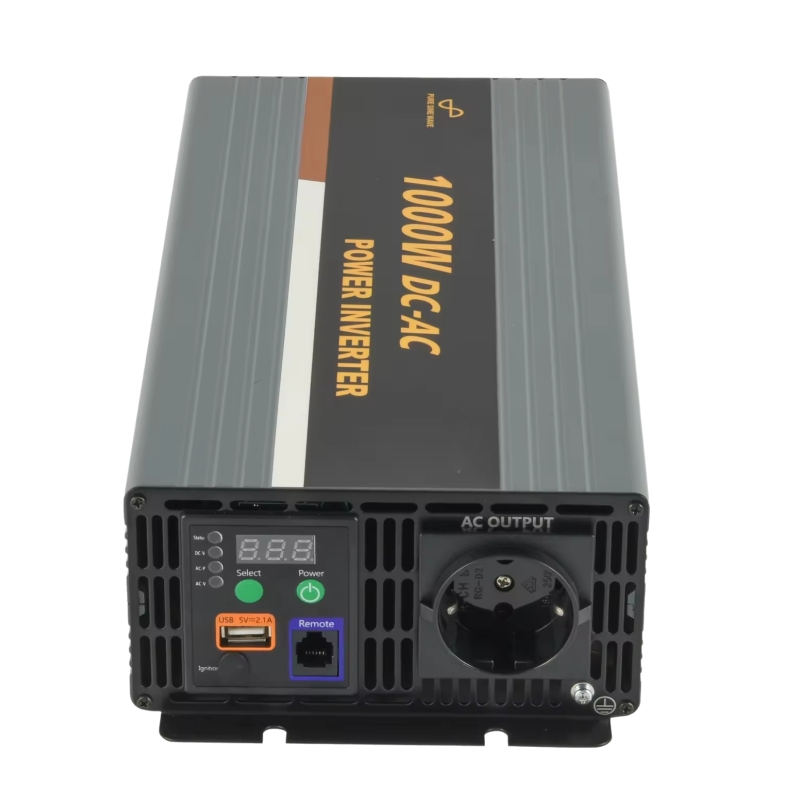

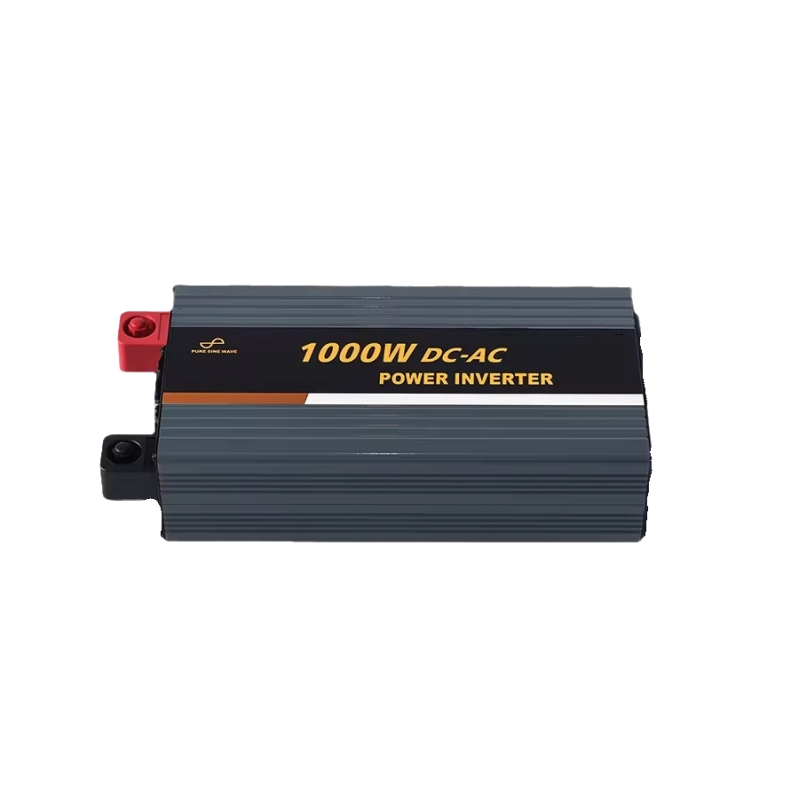

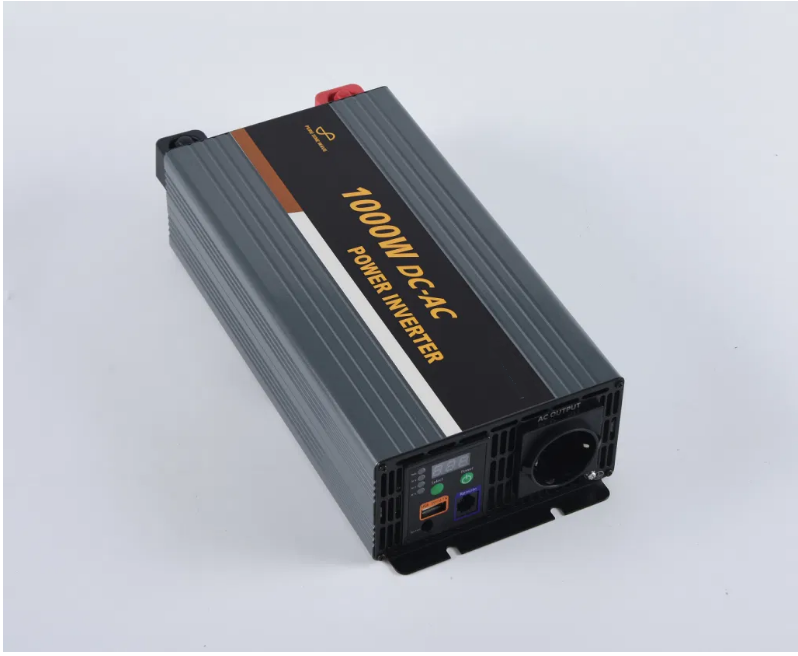

1000W DC to AC Pure Sine Wave Power Inverter 12V/120V
Model
|
LA-1KS-1-1
|
LA-1KS-2-1
|
LA-1KS-1-2
|
LA-1KS-2-2
|
|||||
Continuous Power
|
1000W
|
||||||||
Peak Power
|
2000W
|
||||||||
DC Voltage
|
DC12V
|
DC24V
|
DC12V
|
DC24V
|
|||||
AC Voltage
|
100VAC or 110VAC or 120VAC ± 3V
|
220VAC or 230VAC or 240VAC ± 3V
|
|||||||
No Load Current Draws
|
1A
|
0.5A
|
1A
|
0.5A
|
|||||
Max AC Input Current
|
8.5A
|
4.5A
|
|||||||
DC Voltage Range
|
10-15.5V
|
20-31V
|
10-15.5V
|
20-31V
|
|||||
Low Voltage Alarm
|
Lo0:10.5V
|
11V±0.3V
|
Lo0:21V
|
22V±0.3V
|
Lo0:10.5V
|
11V±0.3V
|
Lo0:21V
|
22V±0.3V
|
|
Lo1:10.8V
|
11.3V±0.3V
|
Lo1:21.6V
|
22.6V±0.3V
|
Lo1:10.8V
|
11.3V±0.3V
|
Lo1:21.6V
|
22.6V±0.3V
|
||
Lo2:11.3V
|
11.8V±0.3V
|
Lo2:22.6V
|
23.6V±0.3V
|
Lo2:11.3V
|
11.8V±0.3V
|
Lo2:22.6V
|
23.6V±0.3V
|
||
Low Voltage Shut Down
|
Lo0:10.5V
|
10.5V±0.3V
|
Lo0:21V
|
21V±0.3V
|
Lo0:10.5V
|
10.5V±0.3V
|
Lo0:21V
|
21V±0.3V
|
|
Lo1:10.8V
|
10.8V±0.3V
|
Lo1:21.6V
|
21.6V±0.3V
|
Lo1:10.8V
|
10.8V±0.3V
|
Lo1:21.6V
|
21.6V±0.3V
|
||
Lo2:11.3V
|
11.3V±0.3V
|
Lo2:22.6V
|
22.6V±0.3V
|
Lo2:11.3V
|
11.3V±0.3V
|
Lo2:22.6V
|
22.6V±0.3V
|
||
Low Voltage Alarm Recovery
|
Lo0:10.5V
|
11.3V±0.3V
|
Lo0:21V
|
22.6V±0.3V
|
Lo0:10.5V
|
11.3V±0.3V
|
Lo0:21V
|
22.6V±0.3V
|
|
Lo1:10.8V
|
11.6V±0.3V
|
Lo1:21.6V
|
23.2V±0.3V
|
Lo1:10.8V
|
11.6V±0.3V
|
Lo1:21.6V
|
23.2V±0.3V
|
||
Lo2:11.3V
|
12.1V±0.3V
|
Lo2:22.6V
|
24.2V±0.3V
|
Lo2:11.3V
|
12.1V±0.3V
|
Lo2:22.6V
|
24.2V±0.3V
|
||
Low Voltage Protection Recovery
|
Lo0:10.5V
|
12V±0.3V
|
Lo0:21V
|
24V±0.3V
|
Lo0:10.5V
|
12V±0.3V
|
Lo0:21V
|
24V±0.3V
|
|
Lo1:10.8V
|
12.3V±0.3V
|
Lo1:21.6V
|
24.6V±0.3V
|
Lo1:10.8V
|
12.3V±0.3V
|
Lo1:21.6V
|
24.6V±0.3V
|
||
Lo2:11.3V
|
12.8V±0.3V
|
Lo2:22.6V
|
25.6V±0.3V
|
Lo2:11.3V
|
12.8V±0.3V
|
Lo2:22.6V
|
25.6V±0.3V
|
||
Over Voltage Shut Down
|
15.7V±0.3V
|
31.5V±0.5V
|
15.7V±0.3V
|
31.5V±0.5V
|
|||||
Over Voltage Recovery
|
15.3V±0.3V
|
29.5V±0.5V
|
15.3V±0.3V
|
29.5V±0.5V
|
|||||
Frequency
|
50HZ ± 0.5HZ or 60HZ ± 0.5HZ
|
||||||||
Output Waveform
|
Pure Sine Wave
|
||||||||
AC Regulation
|
THD<3% (Linear load)
|
||||||||
Output Efficiency
|
up to 91%
|
||||||||
Remote Control (Optional)
|
Cable length: 15m is available.
|
||||||||
Power-Saving mode
|
The power saving mode will be activated when the output power is less than 5W. When output power is more than 10W, the inverter
will automatically return to normal status. |
||||||||
Ignition Function
|
Connect vehicles battery (or connect positive pole of vehicles' STARTER). The inverters start simultaneously When the vehicles
start; The inverters will shut down meantime when the vehicles shut down. |
||||||||
Protection Function
|
Low voltage alarm
|
code: F05
|
Buzzer sounds and fault light turns red
|
||||||
Low voltage shutdown
|
code: F01
|
Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level
within 20ms.) |
|||||||
Over input voltage protection
|
code: F02
|
Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level
within 20ms.) |
|||||||
over load alarm
|
code: F06
|
Buzzer sounds and fault light turns red when output power is overloaded around 110%. But the BUZZ and F06 code will not occured
when the output power drop to a normal level within 20ms. |
|||||||
Over load protection
|
code: F03
|
The inverter shutdown when output power is overloaded around 120%, it need to be recovered by hand.
|
|||||||
Over temperature alarm
|
code: F07
|
Buzzer sounds and fault light turns red when the inverter's internal temperature is higher than the limit value (90±5℃).
|
|||||||
Over temperature protection
|
code: F04
|
The inverter will automatically return to normal status when the internal temperature drops to 80±5℃.
|
|||||||
Short circuit protection
|
code: F03
|
Recover by hand
|
|||||||
Reverse polarity protection
|
Built-in fuse
|
||||||||
AC input overload protection
|
code: F09
|
The fan will start to work when the relay temperature is up to 60±5℃; but it will stop to work when the relay temperature drops to
50±5℃. The unit will alarm, and no AC output when relay temperature is up to 75±5℃; But it will auto recover when the relay temperature drops to normal value. |
|||||||
Fuse
|
Internal
|
USB port
|
5V, 2.1A
|
||||||
Working Temperature
|
-10°C--+50°C
|
Production Size
|
330x150x78mm
|
||||||
Storage Temperature
|
-30°C--+70°C
|
Packing Size
|
40.5x22x13.5cm
|
||||||
Warranty
|
18 months
|
N.W. / G.W. (KG)
|
2.6KG/3.2KG
|
||||||
Start
|
Bipolar soft-start
|
Quantity / Carton
|
6pcs
|
||||||
Cooling Way
|
Intelligent cooling fan
|
Carton Size
|
46x42x43cm
|
||||||
Certification
|
CE, E-mark, FCC, ROHS
|
Carton Weight
|
20.0KG
|
Product Introduction
1000 watt power inverter pure sine wave
★The series of Power Inverters are designed to provide clean 120 Volt AC Power from a 12V battery or bank for many applications. Our Inverters provide a Pure Sine Wave output which is essential to efficientlyrunning a wide variety of sensitive electronic devices such as Office Equipment, Computer, Power Tools, Kitchen appliances, Microwaves and Home Electronics like TV, Stereo’s and more.
★These are a must-have item for any Motorhome to run the 110V equipment when camping off-grid without a 110Vac supply
★Over voltage and under voltage protection
★Over temperature and over load protection
★Short circuit and reverse polarity protection
Advantages
1.1000W continuous pure sine wave power and 2000W surge power
2.Ultra- clean pure sine wave power. With less than 3% total harmonic distortion.
3.The inverter is lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.
4.Digital display shows the DC voltage, AC voltage, output power and some protection codes when inverter is in protection mode.
5.Power saving mode can be selectable.
Product Details
power inverter pure sine wave 1000w
◆Inverts 12V DC to 120V AC
◆Maximum continuous Output Power 1000 Watt
◆Meets 120V AC electronic appliance safety operating standard.
◆It can be used to power most electronic appliances or equipment.
FAQs
there are two main differences between a pure and modified sine-wave inverter: efficiency and cost. Pure sine wave inverters are good at two things: efficiently powering devices that use AC, and powering devices like radios that can suffer from interference. But, they can be expensive. On the other hand, a modified sine wave inverter may produce some interference, resulting in a less-than-pure current, but they are less expensive than their pure-sine counterparts.
If you are in need of an inverter that is going to power sensitive electronics such as: medical devices, computers, anything with a dimmer/variable speed, heater/heating coil, or just needs clean power; buy the pure sine inverter…
On the other hand, if you need temporary power while tail-gating, camping, road-trips or to charge your laptop/two-way radios, power fans, run a blender, power a microwave, etc., the modified sine wave inverter is smart and affordable choice
If you are not sure which one is suitable for your appliances, please contact with us.
For Inductive Load : If connecting with inductive loads (e.g. Compressor, Pump, old CRT TV, Refrigerator, Ice conditioner, Air conditioner, Relays,Fluorescent lamp, Vacuum cleaner), please choose inverter whose rate power is 3-7 times higher than the load’s rate power. For example, for a 150w refrigerator, please choose a 1000w inverter or higher; for a 800w air conditioner, please choose 2500w inverter or higher.
For Resistive Load : If connecting with resistive loads (e.g. Computer, LED TV, Fan, Scanner, Fax machine, Duplicator, Sound system, Juice extractor, Heater, Electric cooker, Coffee maker, microwave, crock pot), please choose inverter whose continuous power is a little higher than the load’s rate power. For example, for loads near 700w, it’s better to choose inverter with continuous power more than 800w.
