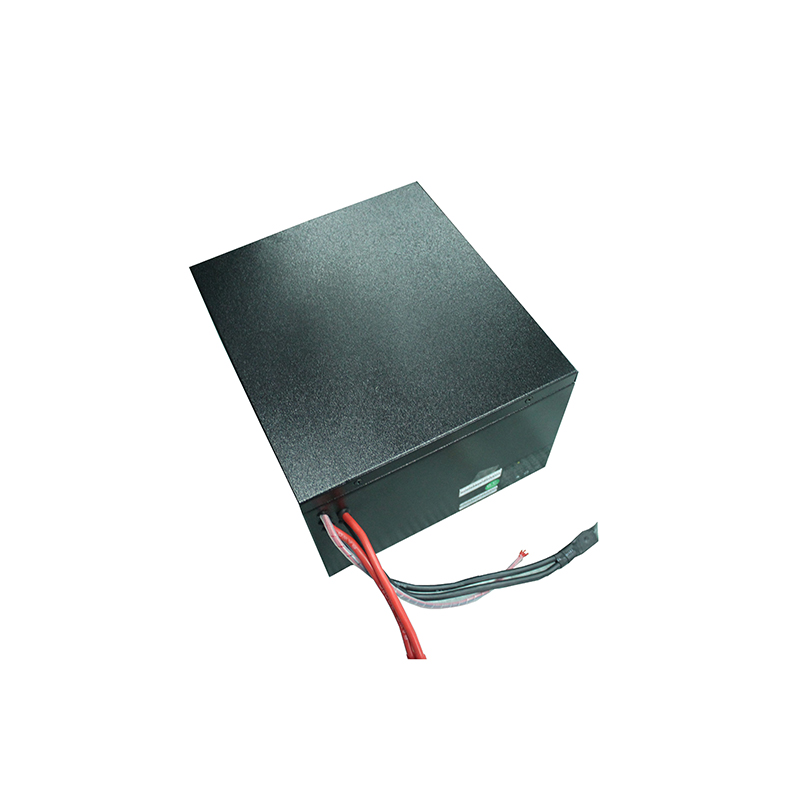

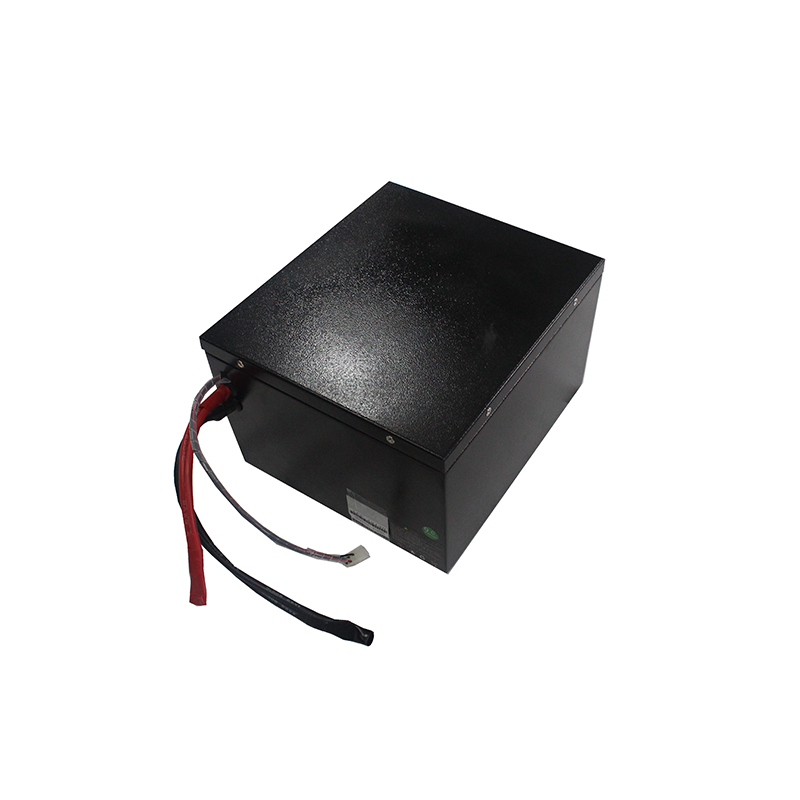

High power excellent discharging performance 12V 130Ah LiFePO4 battery pack for motor home and caravan

High power excellent discharging performance 12V 130Ah LiFePO4 battery pack for motor home and caravan

Short Description:

1. The metallic case 12V 130Ah LiFePO4 battery pack for caravan and RV application.

2. Long cycle life: Rechargeable lithium ion battery cell, has more than 2000 cycles which is 7 times of the lead acid battery.


Product Detail

Company Profile

Product Tags

Model No. ENGY-F12130N
Nominal voltage 12V
Nominal capacity 130Ah
Max. continuous charge current 150A
Max. continuous discharge current 150A
Cycle life ≥2000 times
Charge temperature 0°C~45°C
Discharge temperature -20°C~60°C
Storage temperature -20°C~45°C
Weight 19.4±0.1kg
Dimension 275mm*245mm*170mm
Application Caravan move, motorhome move, power supply, etc.

1. The metallic case 12V 130Ah LiFePO4 battery pack for caravan and RV application.

2. Long cycle life: Rechargeable lithium ion battery cell, has more than 2000 cycles which is 7 times of the lead acid battery.

3. Nominal capacity: 130Ah ± 2% (0.2C,CC(constant current)discharged to 10V or cut off by BMS at 20±5℃).

4. Standard charge current: 26A (0.2C CC (constant current) charged to 14.6V, then CV (constant Voltage) 14.6V charge till current decline to 2600mA).

5. Max charge current: 150A (1.15C CC(constant current)charged to 14.6V, then CV(constant Voltage) 14.6V charge till current decline to 2600mA).

6. Standard discharge current: 26A (0.2C,CC (constant current)discharged to 10V or cut off by BMS).

7. Max.continuous discharge current: 150A (Also can be designed according to clients’ requirements).

Storage

When the battery pack to be long-term stored, charge the battery pack to about 50% capacity( after discharging completely, charge for 2- 3h at 2A),store in dry and ventilated place, charge 1 to 2h for every 3 months. The battery pack and charger should be stored in clean, dry and ventilated place,Avoid contacting with corrosive materials and be away from fire and heat.

Maintenance

a)The battery pack should be stored in 30%~50% charged capacity.
b)If battery pack is not used for a long period, it should be replenished charging one time for 1 to 2h for every three months.
c)In the maintenance process, please do not disassemble the battery pack, otherwise it will cause a decline in battery performance.
d)Forbid to remove any cell in the battery pack. Forbid dissecting battery cells.

LiFePO4 BATTERY COMPANY

Hangzhou LIAO Technology Co.,Ltd

Was established in 2009, with many years of experience We are a professional and leading manufacturer specializedin LiFePO4 batteries.

Our professional custom battery pack solutions help you save a lot of time and money, as well as get established on the market quickly. If you are looking for a custom battery pack manufacturer in China, please contact us for more details.

m2

Production area

MV+

Production capacity

+

Global customers

15

YEARS OF
LIFEPO4 BATTERY

1706758700230
1706758716962
1706758733861
1706758756385
1706758770866
1706758789453
1706758809972
1706758825536
1706758844341
1706759046178
1706759145210
1706759177933
1706759204672
1706759240207
1706759346165
1706759374227
1706759399471
1706759428538
1706759084311
1706765943606
1706765962074
1706765979568
1706765993353
1706766012444
1706766033204
1706766050179
1706766062480
1706766082406
1706766107323
1706766119708
1706766133885
1706766147416
1706766160416
1706759115950

1. Are you factory?
A: Yes, we are factory at Zhejiang China. Welcome to visit our company at any time.

2. Do you have current sample in stock?
A: Usually we don't have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once order confirmed.

3.0EM & ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.

4.What's the delivery time for mass production?
A: Usually 15-25days, it depends on the quantity, material, battery cell model and so on, we suggest to check delivery time case by case.

5.What is your MOQ?
A: 1PCS sample order can be acceptable for testing

6.What is the normal lifetime about battery?
A: More than 800 times for lithium ion battery; more than 2,000 times for LiFePO4 lithium battery.

7.Why choose LIAO Battery?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 15 years-experience for manufacturing LiFePO4 battery.
