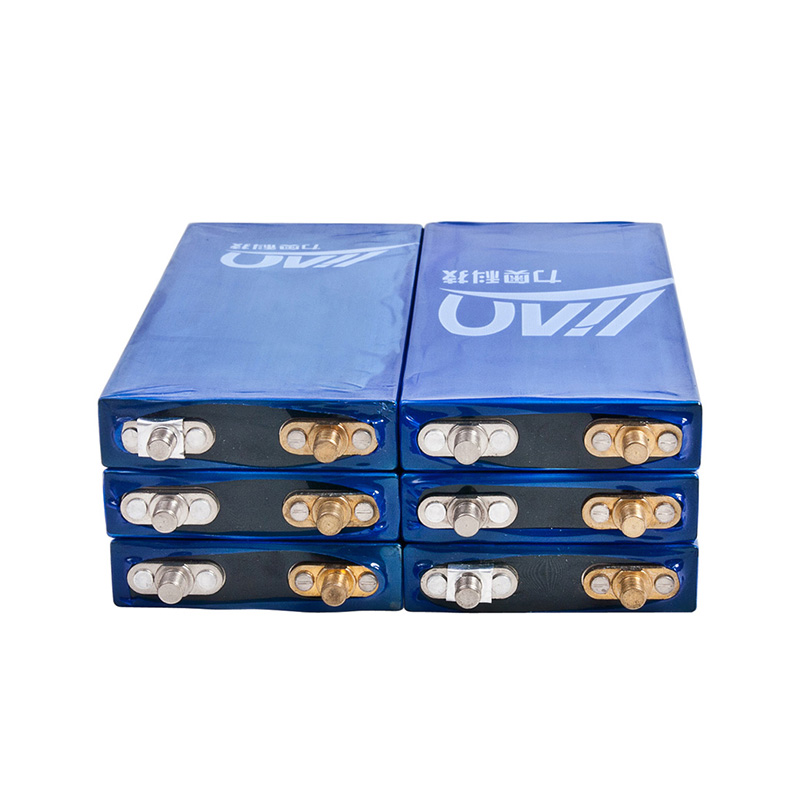

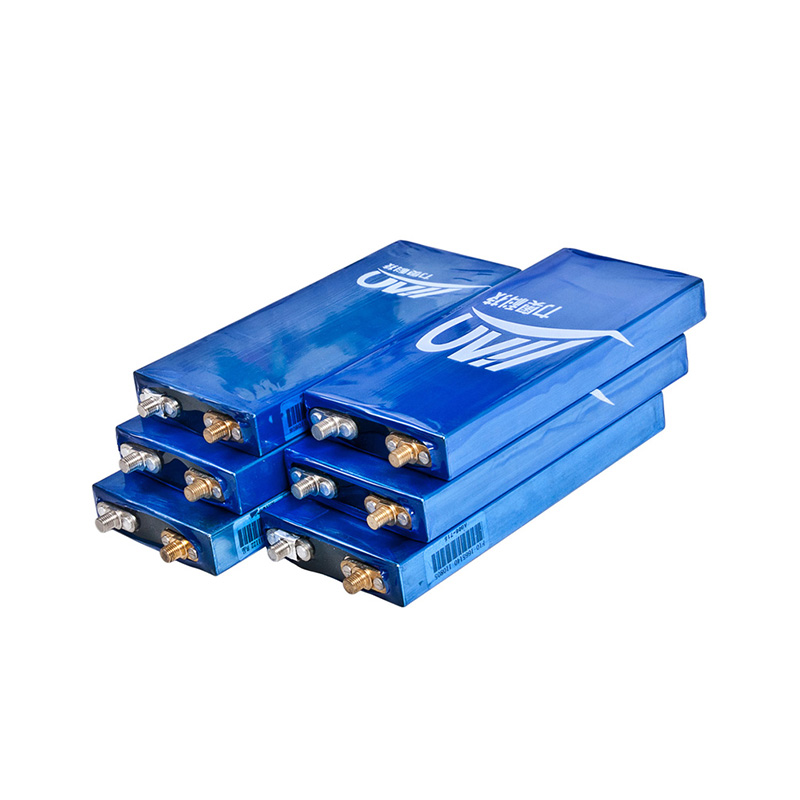

Bolt type prismatic 3.2V 10Ah LiFePO4 battery cell for power supply and energy storage
Model No.：F10-1565150
Nominal voltage：3.2V
Nominal capacity：10Ah
Internal resistance：≤3.5mΩ
Max. continuous charge current：1C
Max. continuous discharge current：3C
Max. impulse discharge current：5C
Cycle life：≥2000 times
Charge temperature：0°C~45°C
Discharge temperature：-20°C~60°C
Storage temperature：-20°C~45°C
Weight：275g
Dimension：15mm*65mm*150mm
Application：Make battery packs for power supply and energy storage systems
High-Quality 3.2V 10Ah LiFePO4 Prismatic Cell Battery - The Epitome of Safety and Performance!
Our LiFePO4 prismatic cell battery stands as a beacon of reliability and safety in the realm of energy storage solutions.
With a capacity of 3.2V 10Ah, this lifepo4 cells is engineered to deliver unparalleled performance across various applications.
Advantage
1. Prismatic LiFePO4 battery cell using positive and negative stud design, for easy assembling and maintenance.
2. The shell of the LiFePO4 battery cell is made of aluminum, which can have a better cooling effect, also have a certain mechanical strength and long life.
3. Battery cell using lamination technology, has the following advantages:
①High space utilization efficiency of high energy density batteries. The 3.2V 10Ah LiFePO4 battery cell: 32Wh; 275g; 116.4Wh/kg; 15mm*65mm*150mm
②Low internal resistance. Our 10Ah battery cell internal resistance:≤3mΩ,
Nearly 50% lower than most of other manufacturers.

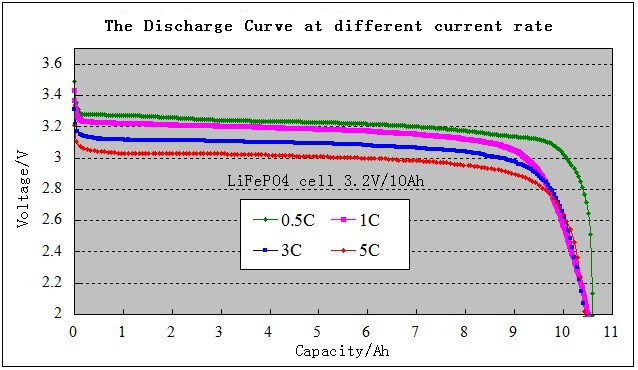

③Excellent large current discharge performance. Sustainable 5C discharge, and the max pulse discharge current can be 8C.

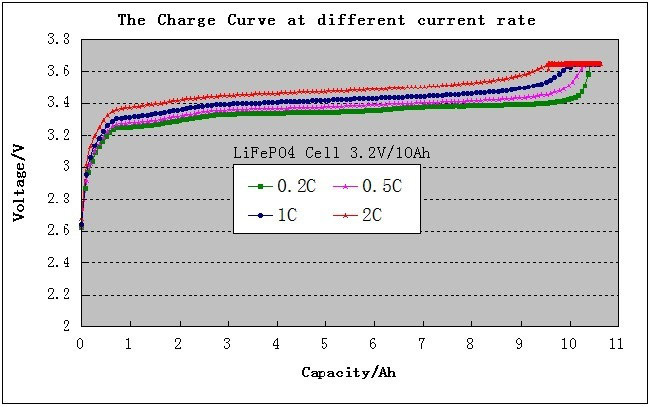

④ Good performance of the large current charging. The maximum our lpf cells possible can be 2C charge while the cycle life of the battery will not be affected.

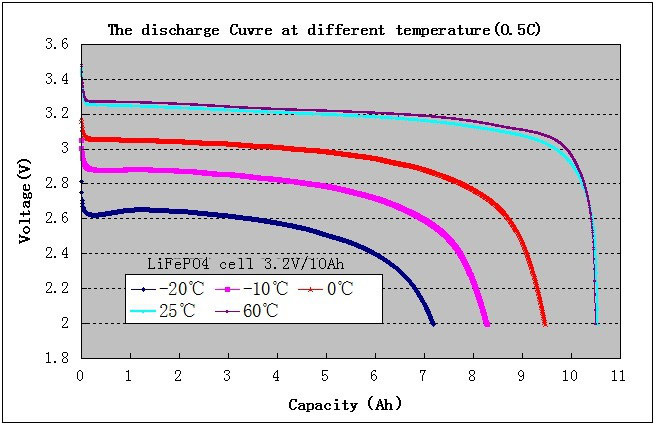

4. A wide range temperature for battery cells discharge. Good discharge performance in high temperature and low temperature. The 0.1C discharge can be used at extremely low temperatures -40℃.

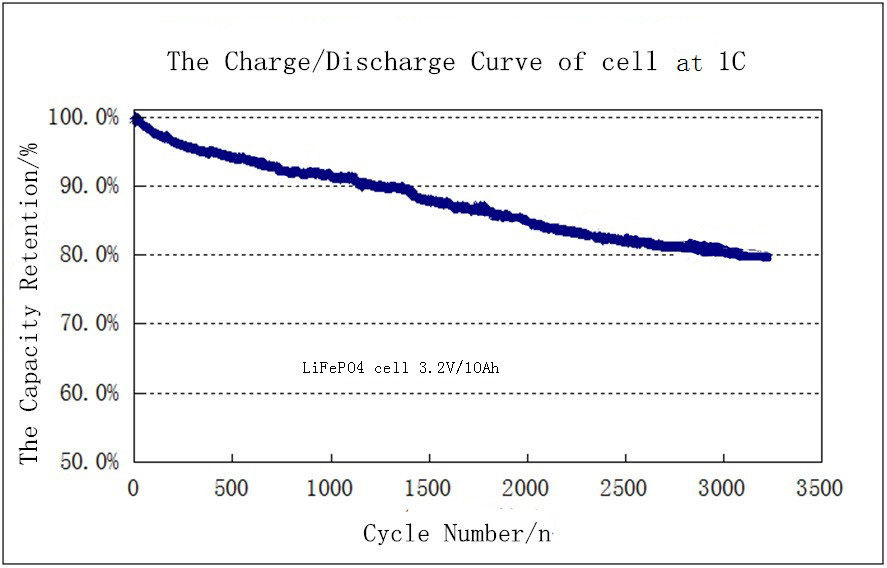

5. Long cycle life. After a long match of materials and processes, developed a long-life lifepo4 battery packs:25±5℃,100%DOD,1C cycle 2000times,capacity keeps more than 80%.
6. We keep strict cells’ grouping and matching: Capacity, Resistance, Constant current ratio, Discharge Platform, Open-circuit voltage and related parameters.

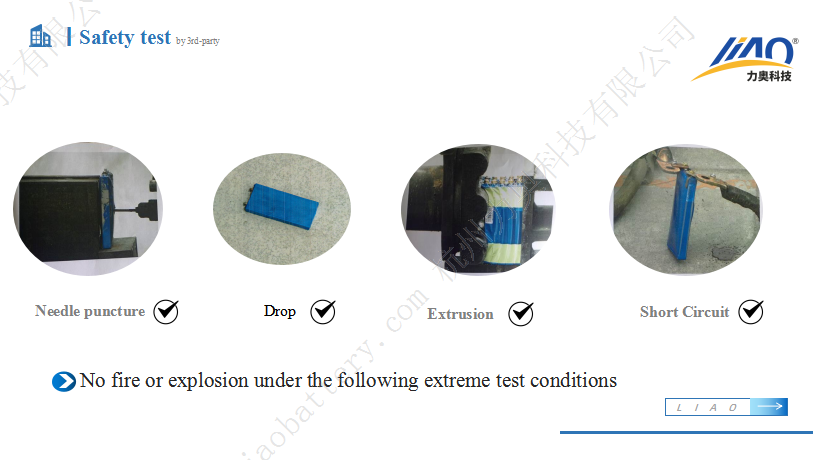

7.Prioritizing safety above all else, our LiFePO4 prismatic cell batteries undergo rigorous forced safety testing to ensure compliance with the highest industry standards. Rest assured, our lifepo4 battery meet stringent safety requirements, providing peace of mind for users and operators alike.
Performance
Lifepo4 Battery 10ah 3.2v Application:
Widely use battery, electric vehicles, electric motorcycles, electric bicycles, sightseeing coaches, batteries pack DIY, inverter battery, outdoor high power lithium battery pack, solar panel, UPS
LiFePO4 BATTERY COMPANY
Hangzhou LIAO Technology Co.,Ltd
Was established in 2009, with many years of experience We are a professional and leading manufacturer specializedin LiFePO4 batteries.
Our professional custom battery pack solutions help you save a lot of time and money, as well as get established on the market quickly. If you are looking for a custom battery pack manufacturer in China, please contact us for more details.
Production area
Production capacity
Global customers
15
YEARS OF
LIFEPO4 BATTERY
1. Are you factory?
A: Yes, we are factory at Zhejiang China. Welcome to visit our company at any time.
2. Do you have current sample in stock?
A: Usually we don't have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once order confirmed.
3.0EM & ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.
4.What's the delivery time for mass production?
A: Usually 15-25days, it depends on the quantity, material, battery cell model and so on, we suggest to check delivery time case by case.
5.What is your MOQ?
A: 1PCS sample order can be acceptable for testing
6.What is the normal lifetime about battery?
A: More than 800 times for lithium ion battery; more than 2,000 times for LiFePO4 lithium battery.
7.Why choose LIAO Battery?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 15 years-experience for manufacturing LiFePO4 battery.
Hangzhou LIAO Technology Co.,Ltd is professional and leading manufacturer specialized in LiFePO4 batteries and Exporting of Green Clean Energy and relevant products.
The lithium batteries produced by the company has good safety performance, long cycle life and high efficiency.
Products range from LiFePo4 batteries, , BMS board, Inverters, as well as other relevant electrical products which can be widely used in ESS/UPS/Telecom Base Station/Residential and commercial energy storage system/ Solar Street Light/ RV/ Campers/ Caravans/ Marine /Forklifts/ E-Scooter/ Rickshaws/ Golf Cart/ AGV/ UTV/ ATV/ Medical machines/ Electric wheelchairs/Lawn mowers, etc.
The lithium iron phosphate battery products have been exported to USA, Canada, UK, France, Germany, Norway, Italy, Sweden, Switzerland, Australia, New Zealand, Jamaica, Barbados, Panama, Costa Rica, Russia, South Africa, Kenya, Indonesia, the Philippines and other countries and regions.
With over 15 years’ experience and rapid growth, Hangzhou LIAO Technology Co.,Ltd is committed to providing our esteemed customers with reliable quality lithium iron phosphate batteries systems and integration solutions and will continue to innovate and improve its renewable energy products to help the world create a more eco-friendly, cleaner and brighter future.
