3.2V 206Ah Lifepo4 Cells
| Item | Specifications | Remarks |
| Nominal Capacity | 206Ah | N/A |
| Nominal Voltage | 3.2V | |
| Nominal Current | 100A | |
| AC Internal Resistance | ＜0.3mΩ | 1KHZ, 50mA |
| Weight | 4000±120g | |
| Dimension | 54.3*173.8*200.3mm | |
| Energy Density | ≥164Wh/Kg | |
| Maximum Charging Voltage | 3.65V | |
| Minimum Discharge Voltage | 2.5V | 0℃<T≤60℃ |
| 2.0V | -20℃<T≤0℃ | |
| Operating Temperature | Charge: 0℃<T≤55℃ | |
| Discharge: -20℃<T≤60℃ | ||
| Maximum Continuous Current | Charge: 200A | |
| Discharge: 200A | ||
| Peak Charging Current | 412A | |
| Peak discharging Current | 412A | |

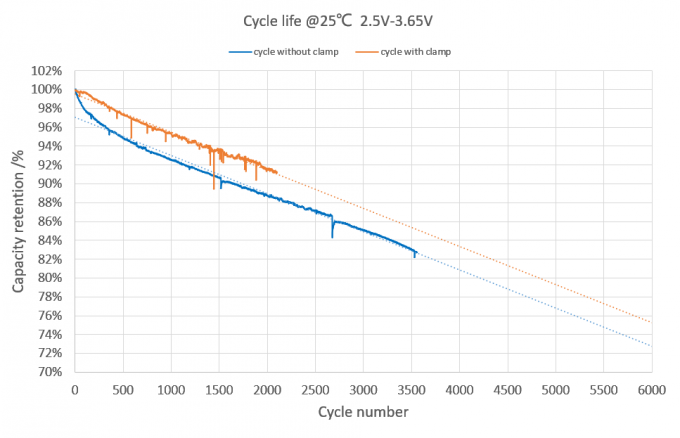

| Normal Temperature Cycle Life | ≥6000 cycles | 0.5C/0.5C 100%DOD |

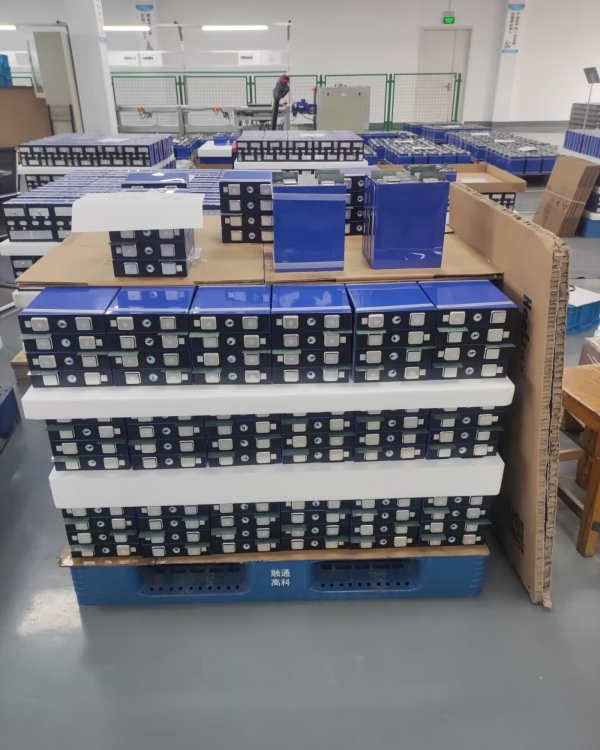

Lifepo4 cells is one of most popular Lithium Battery cell with capacity of 206AH.There are hundreds of batteries in stock.
Product Introduction

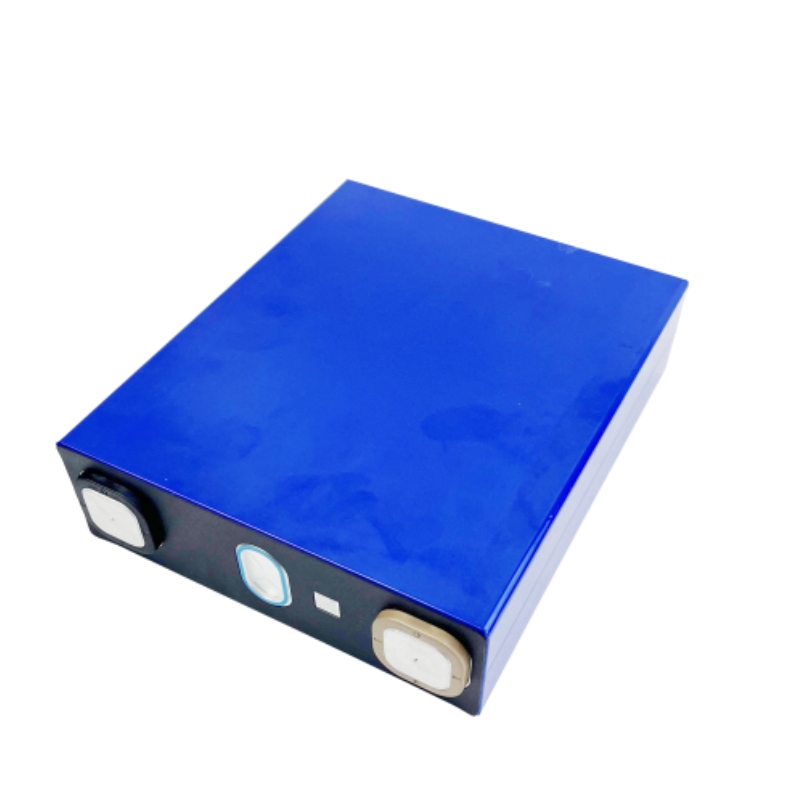

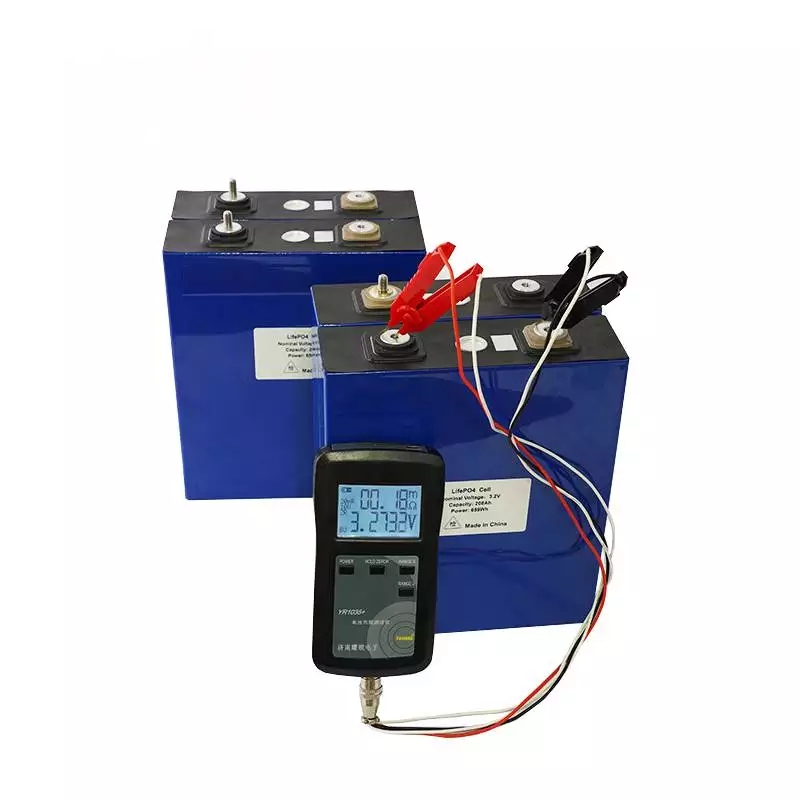

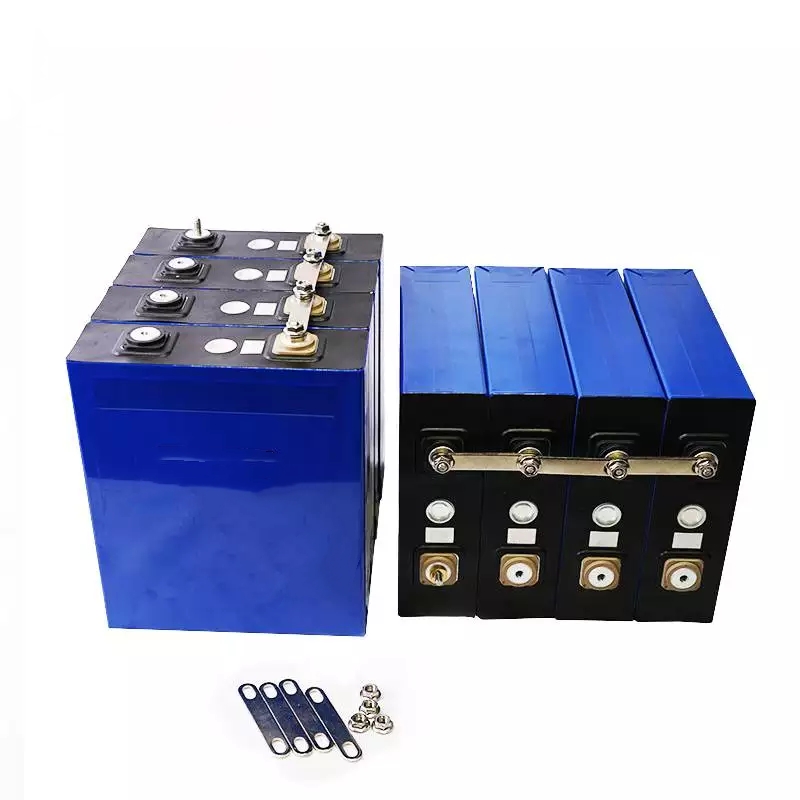

Our lifepo4 battery cells with high energy density, made on the safe LiFePO4 technology, capacity 206Ah, Nominal voltage 3.2V, and operational voltage is 2.8-3.65V. This battery cell is suitable for all traction applications, including passenger cars. It fully complies also for stationary applications, such as energy storage.
Advantages
Our lifepo4 cells offer several advantages:
1.Low weight, High capacity
2.Extended Cycle life
3.Low Self Discharge
4.Superior Cranking Power
5.Completely Sealed
6.Environmental
7.Various DIY styles
Product Details
★ There are many vendors provide 206ah cells at a very low price. However, the batteries they provided are grade B cells. They renew batteries to make them look new, but these cells with poor performance can only work for 1 or 2 years. We provide brand new grade A cells with three years warranty, and our battery will last 7-8 years on average.
★ We provides brand new A grade cell lifepo4
★ Welcome OEM, ODM.
Application
•Home energy storage system
•UPS backup
•Lighting, digital/CCTV cameras
•Portable TV
•E-Robot
•Electric vehicles
•DIY loud speaker
•12V router
•Air pump
•Fish finder
•Golf car
•Trolling motor
•Motorhome/RV & camper
•Houseboat
•Travel Trailer
•Dump Trailer
